Salamatrix.UI — Native dialogs from every runtime

One native UI service · seven caller surfaces

Build the window in your language. Let Salamander make it native.

Salamatrix.UI is the framework-owned dialog and control layer for Open Salamander extensions. Node, Python, PowerShell, PHP, Lua, Automation JScript, and native C++ all describe the same controls and receive the same native window.

Dark mode, current Salamander colors, DPI scaling, keyboard traversal, host controls, accessibility metadata, validation, and cleanup stay inside Salamatrix. A runtime provider never needs its own GUI toolkit.

See every language Read the complete Markdown guide

Framework ownership, not a prebuilt gallery

The capabilities window is both a gallery and real extension source. Every bundled demo creates the dialog, adds every control, sets every native property, shows it, and destroys it. The old shortcut that merely opened a framework-owned showcase is not used by these demos.

Extension sourceNode · Python · PowerShell · PHP · Lua

SMX1

Salamatrix package hostDialog IDs · ownership · events · cleanup

ABI

NativeDialogOpen Salamander controls · DPI · dark mode

Automation JScript uses a thin COM facade over the same service. DemoPlug queries SALAMATRIX_SERVICE_UI and uses IDialog/IControl directly. The concrete window still lives in Salamatrix in both cases.

The native control catalog

labelCaption text

statictextHost styled text, ellipsis, notify

textboxEditable, read-only, multiline

checkboxBoolean choice

radioExclusive choice

comboboxDrop-down item selection

buttonAction and dialog result

listviewColumns, rows, native list styles

treeviewHierarchical items

tabcontrolTabs and selected index

folderpickerEditable path and folder browser

filepickerOpen/save dialog and filter

groupboxCaptioned visual grouping

hyperlinkOpen, post command, show hint

progressbarKnown, 64-bit, indeterminate

arrowbuttonCompact arrow action

textarrowbuttonText with arrow/drop-down

colorarrowbuttonColor sample and text

toolbarheaderModify/up/down list header

One option vocabulary

All five workers forward the same fields: readOnly, checked, dialogResult, keepOpen, multiline, filter, save, styleFlags, pathSeparator, toolTip, actionOpen, actionCommand, actionHint, progress values/timing/text, colors, and toolbar-header alignment/masks.

One layout, independently constructed

The common dialog is 463 × 236. Its lower-right Created by group proves which caller assembled it:

JavaScript.NodeSalamatrix Node Demo

Python.CPythonSalamatrix Python Demo

PowerShellSalamatrix PowerShell Demo

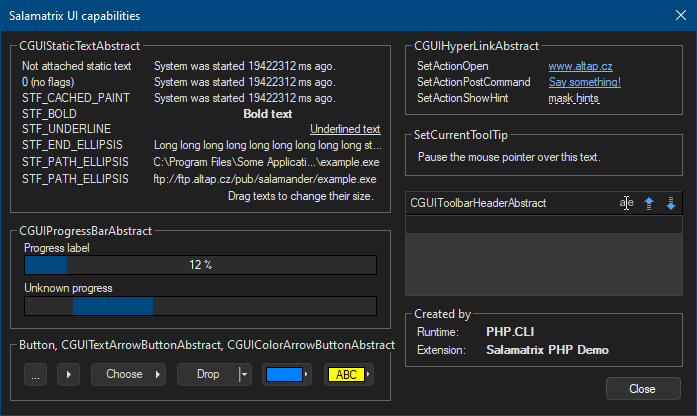

PHP.CLISalamatrix PHP Demo

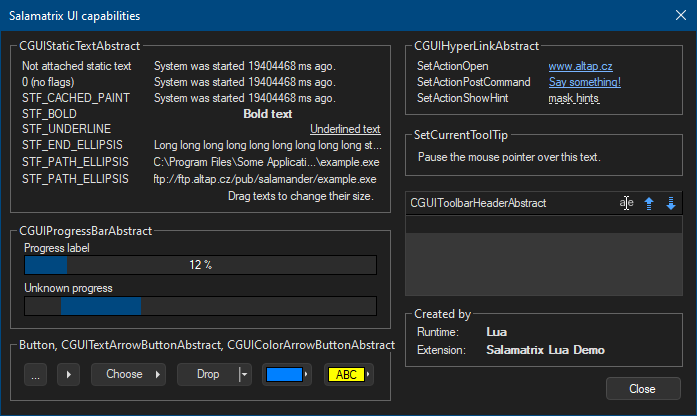

LuaSalamatrix Lua Demo

Automation.JScriptSalamatrix Progress Demo

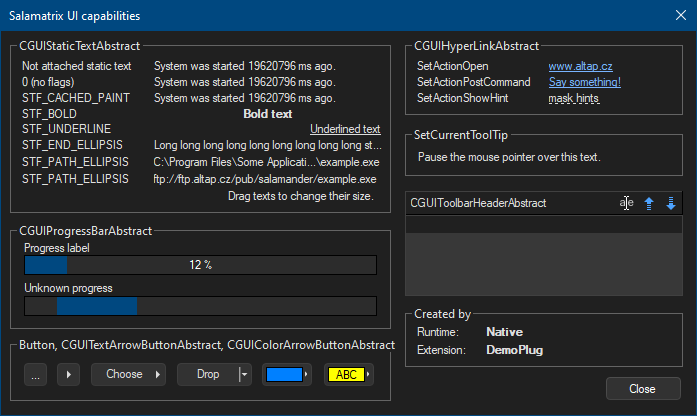

NativeDemoPlug

JavaScript / Node

Async facade; create first, then await every host operation.

Node.js script source code example:

// Build the complete gallery here, through the public runtime-neutral API.
  const dialog = await Salamander.ui.dialog(
    "Salamatrix UI capabilities", { width: 463, height: 236 }).create();
  const add = (kind, id, text, x, y, width, height, options = {}) =>
    dialog.addControl(kind, id, text, { x, y, width, height }, options);
  const uptime = `System was started ${await Salamander.ui.uptime()} ms ago.`;
  await add("groupbox", "static-group", "CGUIStaticTextAbstract", 6, 4, 254, 108);
  await add("label", "not-attached-label", "Not attached static text", 14, 17, 80, 8);
  await add("label", "uptime-plain", uptime, 102, 17, 152, 8);
  const rows = [
    ["static-none", "0 (no flags)", uptime, 27, 0],
    ["static-cache", "STF_CACHED_PAINT", uptime, 37, 1],
    ["static-bold", "STF_BOLD", "Bold &text", 47, 0x10082],
    ["static-underline", "STF_UNDERLINE", "Underlined text", 56, 0x20004],
    ["static-end", "STF_END_ELLIPSIS", "Long long long long long long long long long string.", 66, 0x20],
    ["static-path", "STF_PATH_ELLIPSIS", "C:\\Program Files\\Some Application With Long Path\\example.exe", 76, 0x40],
    ["static-path-url", "STF_PATH_ELLIPSIS", "ftp://ftp.altap.cz/pub/salamander/example.exe", 87, 0x40],
  ];
  for (const [id, caption, value, y, styleFlags] of rows) {
    await add("label", `${id}-label`, caption, 14, y, 75, 8);
    await add("statictext", id, value, 102, y, 152, 8,
      { styleFlags, ...(id === "static-path-url" ? { pathSeparator: "/" } : {}) });
  }
  await add("label", "drag-hint", "Drag texts to change their size.", 151, 97, 103, 8);
  await add("groupbox", "progress-group", "CGUIProgressBarAbstract", 6, 118, 254, 66);
  await add("label", "progress-label", "Progress label", 15, 129, 60, 8);
  await add("progressbar", "progress", "", 15, 138, 235, 12, { progress: 120 });
  await add("label", "unknown-label", "Unknown progress", 15, 154, 67, 8);
  await add("progressbar", "unknown-progress", "", 15, 163, 235, 12,
    { progress: -1, indeterminateDuration: -1, indeterminateInterval: 100 });
  await add("groupbox", "buttons-group", "Button, CGUITextArrowButtonAbstract, CGUIColorArrowButtonAbstract", 6, 188, 254, 40);
  await add("button", "more", "...", 15, 204, 15, 14, { keepOpen: true });
  await add("arrowbutton", "arrow", "", 37, 204, 15, 14);
  await add("textarrowbutton", "choose", "&Choose", 60, 204, 50, 14, { styleFlags: 8 });
  await add("textarrowbutton", "drop", "&Drop", 117, 204, 50, 14, { styleFlags: 2 });
  await add("colorarrowbutton", "color", "", 174, 204, 33, 14, { textColor: 0xff8000, backgroundColor: 0xff8000 });
  await add("colorarrowbutton", "color-text", "ABC", 215, 204, 33, 14, { textColor: 0, backgroundColor: 0xffff });
  await add("groupbox", "hyperlink-group", "CGUIHyperLinkAbstract", 269, 4, 185, 48);
  await add("label", "open-label", "SetActionOpen", 277, 17, 75, 8);
  await add("hyperlink", "open-link", "www.altap.cz", 365, 17, 47, 8, { styleFlags: 0x14, actionOpen: "https://www.altap.cz" });
  await add("label", "command-label", "SetActionPostCommand", 277, 27, 81, 8);
  await add("hyperlink", "command-link", "Say something!", 365, 27, 55, 8, { styleFlags: 0x14, actionCommand: 0x7f01 });
  await add("label", "hint-label", "SetActionShowHint", 277, 37, 81, 8);
  await add("hyperlink", "hint-link", "mask hints", 365, 37, 40, 8, { styleFlags: 8, actionHint: "text 1 text 1 text 1 text 1\ntext 2 text 2 text 2" });
  await add("groupbox", "tooltip-group", "SetCurrentToolTip", 269, 59, 185, 31);
  await add("statictext", "tooltip", "Pause the mouse pointer over this text.", 278, 73, 130, 8, { styleFlags: 0x40000, toolTip: "ToolTip" });
  await add("listview", "header-list", "", 269, 113, 185, 50, { styleFlags: 0x01e00000 });
  await add("toolbarheader", "toolbar-header", "CGUIToolbarHeaderAbstract", 269, 102, 96, 8, { alignControlId: "header-list", buttonMask: 0x31 });
  await add("groupbox", "origin-group", "Created by", 269, 169, 185, 38);
  await add("label", "runtime-label", "Runtime:", 277, 181, 42, 8);
  await add("statictext", "runtime-value", "JavaScript.Node", 323, 181, 122, 8, { styleFlags: 2 });
  await add("label", "extension-label", "Extension:", 277, 192, 42, 8);
  await add("statictext", "extension-value", "Salamatrix Node Demo", 323, 192, 122, 8, { styleFlags: 2 });
  await add("button", "close", "Close", 403, 213, 50, 14, { dialogResult: 1, styleFlags: 0x100000 });
  try { await dialog.show(); } finally { await dialog.close(); }
}

Python

Synchronous facade with a Python options dictionary.

Python script source code example:

# Build the complete gallery here, through the public runtime-neutral API.
dialog = Salamander.ui.dialog("Salamatrix UI capabilities", 463, 236)
def add(kind, control_id, text, x, y, width, height, **options):
    dialog.add_control(kind, control_id, text,
                       layout={"x": x, "y": y, "width": width, "height": height},
                       options=options)

uptime = f"System was started {Salamander.ui.uptime()} ms ago."
add("groupbox", "static-group", "CGUIStaticTextAbstract", 6, 4, 254, 108)
add("label", "not-attached-label", "Not attached static text", 14, 17, 80, 8)
add("label", "uptime-plain", uptime, 102, 17, 152, 8)
rows = [
    ("static-none", "0 (no flags)", uptime, 27, 0),
    ("static-cache", "STF_CACHED_PAINT", uptime, 37, 1),
    ("static-bold", "STF_BOLD", "Bold &text", 47, 0x10082),
    ("static-underline", "STF_UNDERLINE", "Underlined text", 56, 0x20004),
    ("static-end", "STF_END_ELLIPSIS", "Long long long long long long long long long string.", 66, 0x20),
    ("static-path", "STF_PATH_ELLIPSIS", r"C:\Program Files\Some Application With Long Path\example.exe", 76, 0x40),
    ("static-path-url", "STF_PATH_ELLIPSIS", "ftp://ftp.altap.cz/pub/salamander/example.exe", 87, 0x40),
]
for control_id, caption, value, y, flags in rows:
    add("label", control_id + "-label", caption, 14, y, 75, 8)
    extra = {"styleFlags": flags}
    if control_id == "static-path-url": extra["pathSeparator"] = "/"
    add("statictext", control_id, value, 102, y, 152, 8, **extra)
add("label", "drag-hint", "Drag texts to change their size.", 151, 97, 103, 8)
add("groupbox", "progress-group", "CGUIProgressBarAbstract", 6, 118, 254, 66)
add("label", "progress-label", "Progress label", 15, 129, 60, 8)
add("progressbar", "progress", "", 15, 138, 235, 12, progress=120)
add("label", "unknown-label", "Unknown progress", 15, 154, 67, 8)
add("progressbar", "unknown-progress", "", 15, 163, 235, 12, progress=-1, indeterminateDuration=-1, indeterminateInterval=100)
add("groupbox", "buttons-group", "Button, CGUITextArrowButtonAbstract, CGUIColorArrowButtonAbstract", 6, 188, 254, 40)
add("button", "more", "...", 15, 204, 15, 14, keepOpen=True)
add("arrowbutton", "arrow", "", 37, 204, 15, 14)
add("textarrowbutton", "choose", "&Choose", 60, 204, 50, 14, styleFlags=8)
add("textarrowbutton", "drop", "&Drop", 117, 204, 50, 14, styleFlags=2)
add("colorarrowbutton", "color", "", 174, 204, 33, 14, textColor=0xff8000, backgroundColor=0xff8000)
add("colorarrowbutton", "color-text", "ABC", 215, 204, 33, 14, textColor=0, backgroundColor=0xffff)
add("groupbox", "hyperlink-group", "CGUIHyperLinkAbstract", 269, 4, 185, 48)
add("label", "open-label", "SetActionOpen", 277, 17, 75, 8)
add("hyperlink", "open-link", "www.altap.cz", 365, 17, 47, 8, styleFlags=0x14, actionOpen="https://www.altap.cz")
add("label", "command-label", "SetActionPostCommand", 277, 27, 81, 8)
add("hyperlink", "command-link", "Say something!", 365, 27, 55, 8, styleFlags=0x14, actionCommand=0x7f01)
add("label", "hint-label", "SetActionShowHint", 277, 37, 81, 8)
add("hyperlink", "hint-link", "mask hints", 365, 37, 40, 8, styleFlags=8, actionHint="text 1 text 1 text 1 text 1\ntext 2 text 2 text 2")
add("groupbox", "tooltip-group", "SetCurrentToolTip", 269, 59, 185, 31)
add("statictext", "tooltip", "Pause the mouse pointer over this text.", 278, 73, 130, 8, styleFlags=0x40000, toolTip="ToolTip")
add("listview", "header-list", "", 269, 113, 185, 50, styleFlags=0x01e00000)
add("toolbarheader", "toolbar-header", "CGUIToolbarHeaderAbstract", 269, 102, 96, 8, alignControlId="header-list", buttonMask=0x31)
add("groupbox", "origin-group", "Created by", 269, 169, 185, 38)
add("label", "runtime-label", "Runtime:", 277, 181, 42, 8)
add("statictext", "runtime-value", "Python.CPython", 323, 181, 122, 8, styleFlags=2)
add("label", "extension-label", "Extension:", 277, 192, 42, 8)
add("statictext", "extension-value", "Salamatrix Python Demo", 323, 192, 122, 8, styleFlags=2)
add("button", "close", "Close", 403, 213, 50, 14, dialogResult=1, styleFlags=0x100000)
try:
    dialog.show()
finally:
    dialog.close()

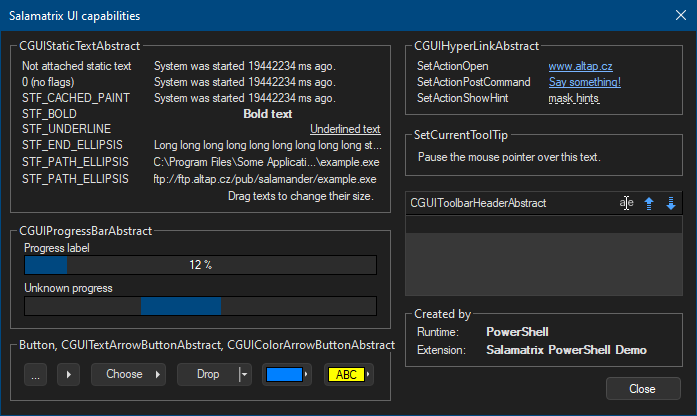

PowerShell

Layout and extended properties are ordinary hashtables.

PowerShell script source code example:

# Build the complete gallery here, through the public runtime-neutral API.
    $dialog = $Salamander.ui.Dialog('Salamatrix UI capabilities', 463, 236)
    function Add-CapabilityControl($kind, $id, $text, $x, $y, $width, $height, $options = @{}) {
        $dialog.AddControl($kind, $id, $text, $false, $false, 0,
            @{x=$x; y=$y; width=$width; height=$height}, $false, $false, $options)
    }
    $uptime = "System was started $($Salamander.ui.Uptime()) ms ago."
    Add-CapabilityControl groupbox static-group 'CGUIStaticTextAbstract' 6 4 254 108
    Add-CapabilityControl label not-attached-label 'Not attached static text' 14 17 80 8
    Add-CapabilityControl label uptime-plain $uptime 102 17 152 8
    $rows = @(
        @('static-none','0 (no flags)',$uptime,27,0),
        @('static-cache','STF_CACHED_PAINT',$uptime,37,1),
        @('static-bold','STF_BOLD','Bold &text',47,0x10082),
        @('static-underline','STF_UNDERLINE','Underlined text',56,0x20004),
        @('static-end','STF_END_ELLIPSIS','Long long long long long long long long long string.',66,0x20),
        @('static-path','STF_PATH_ELLIPSIS','C:\Program Files\Some Application With Long Path\example.exe',76,0x40),
        @('static-path-url','STF_PATH_ELLIPSIS','ftp://ftp.altap.cz/pub/salamander/example.exe',87,0x40))
    foreach ($row in $rows) {
        Add-CapabilityControl label "$($row[0])-label" $row[1] 14 $row[3] 75 8
        $extra = @{styleFlags=$row[4]}; if ($row[0] -eq 'static-path-url') { $extra.pathSeparator='/' }
        Add-CapabilityControl statictext $row[0] $row[2] 102 $row[3] 152 8 $extra
    }
    Add-CapabilityControl label drag-hint 'Drag texts to change their size.' 151 97 103 8
    Add-CapabilityControl groupbox progress-group 'CGUIProgressBarAbstract' 6 118 254 66
    Add-CapabilityControl label progress-label 'Progress label' 15 129 60 8
    Add-CapabilityControl progressbar progress '' 15 138 235 12 @{progress=120}
    Add-CapabilityControl label unknown-label 'Unknown progress' 15 154 67 8
    Add-CapabilityControl progressbar unknown-progress '' 15 163 235 12 @{progress=-1;indeterminateDuration=-1;indeterminateInterval=100}
    Add-CapabilityControl groupbox buttons-group 'Button, CGUITextArrowButtonAbstract, CGUIColorArrowButtonAbstract' 6 188 254 40
    Add-CapabilityControl button more '...' 15 204 15 14 @{keepOpen=$true}
    Add-CapabilityControl arrowbutton arrow '' 37 204 15 14
    Add-CapabilityControl textarrowbutton choose '&Choose' 60 204 50 14 @{styleFlags=8}
    Add-CapabilityControl textarrowbutton drop '&Drop' 117 204 50 14 @{styleFlags=2}
    Add-CapabilityControl colorarrowbutton color '' 174 204 33 14 @{textColor=0xff8000;backgroundColor=0xff8000}
    Add-CapabilityControl colorarrowbutton color-text ABC 215 204 33 14 @{textColor=0;backgroundColor=0xffff}
    Add-CapabilityControl groupbox hyperlink-group CGUIHyperLinkAbstract 269 4 185 48
    Add-CapabilityControl label open-label SetActionOpen 277 17 75 8
    Add-CapabilityControl hyperlink open-link www.altap.cz 365 17 47 8 @{styleFlags=0x14;actionOpen='https://www.altap.cz'}
    Add-CapabilityControl label command-label SetActionPostCommand 277 27 81 8
    Add-CapabilityControl hyperlink command-link 'Say something!' 365 27 55 8 @{styleFlags=0x14;actionCommand=0x7f01}
    Add-CapabilityControl label hint-label SetActionShowHint 277 37 81 8
    Add-CapabilityControl hyperlink hint-link 'mask hints' 365 37 40 8 @{styleFlags=8;actionHint="text 1 text 1 text 1 text 1`ntext 2 text 2 text 2"}
    Add-CapabilityControl groupbox tooltip-group SetCurrentToolTip 269 59 185 31
    Add-CapabilityControl statictext tooltip 'Pause the mouse pointer over this text.' 278 73 130 8 @{styleFlags=0x40000;toolTip='ToolTip'}
    Add-CapabilityControl listview header-list '' 269 113 185 50 @{styleFlags=0x01e00000}
    Add-CapabilityControl toolbarheader toolbar-header CGUIToolbarHeaderAbstract 269 102 96 8 @{alignControlId='header-list';buttonMask=0x31}
    Add-CapabilityControl groupbox origin-group 'Created by' 269 169 185 38
    Add-CapabilityControl label runtime-label 'Runtime:' 277 181 42 8
    Add-CapabilityControl statictext runtime-value PowerShell 323 181 122 8 @{styleFlags=2}
    Add-CapabilityControl label extension-label 'Extension:' 277 192 42 8
    Add-CapabilityControl statictext extension-value 'Salamatrix PowerShell Demo' 323 192 122 8 @{styleFlags=2}
    Add-CapabilityControl button close Close 403 213 50 14 @{dialogResult=1;styleFlags=0x100000}
    try { [void]$dialog.Show() } finally { $dialog.Close() }
}

PHP

The last argument is the common extended option map.

PHP script source code example:

<?php
    // Build the complete gallery here, through the public runtime-neutral API.
    $dialog = $Salamander->ui->dialog('Salamatrix UI capabilities', 463, 236);
    $add = function ($kind, $id, $text, $x, $y, $width, $height, $options = array()) use ($dialog) {
        $dialog->addControl($kind, $id, $text, false, false, 0,
            array('x'=>$x, 'y'=>$y, 'width'=>$width, 'height'=>$height), false, false, $options);
    };
    $uptime = 'System was started ' . $Salamander->ui->uptime() . ' ms ago.';
    $add('groupbox','static-group','CGUIStaticTextAbstract',6,4,254,108);
    $add('label','not-attached-label','Not attached static text',14,17,80,8);
    $add('label','uptime-plain',$uptime,102,17,152,8);
    $rows = array(
        array('static-none','0 (no flags)',$uptime,27,0),
        array('static-cache','STF_CACHED_PAINT',$uptime,37,1),
        array('static-bold','STF_BOLD','Bold &text',47,0x10082),
        array('static-underline','STF_UNDERLINE','Underlined text',56,0x20004),
        array('static-end','STF_END_ELLIPSIS','Long long long long long long long long long string.',66,0x20),
        array('static-path','STF_PATH_ELLIPSIS','C:\\Program Files\\Some Application With Long Path\\example.exe',76,0x40),
        array('static-path-url','STF_PATH_ELLIPSIS','ftp://ftp.altap.cz/pub/salamander/example.exe',87,0x40));
    foreach ($rows as $row) {
        $add('label',$row[0].'-label',$row[1],14,$row[3],75,8);
        $extra = array('styleFlags'=>$row[4]);
        if ($row[0] === 'static-path-url') $extra['pathSeparator'] = '/';
        $add('statictext',$row[0],$row[2],102,$row[3],152,8,$extra);
    }
    $add('label','drag-hint','Drag texts to change their size.',151,97,103,8);
    $add('groupbox','progress-group','CGUIProgressBarAbstract',6,118,254,66);
    $add('label','progress-label','Progress label',15,129,60,8);
    $add('progressbar','progress','',15,138,235,12,array('progress'=>120));
    $add('label','unknown-label','Unknown progress',15,154,67,8);
    $add('progressbar','unknown-progress','',15,163,235,12,array('progress'=>-1,'indeterminateDuration'=>-1,'indeterminateInterval'=>100));
    $add('groupbox','buttons-group','Button, CGUITextArrowButtonAbstract, CGUIColorArrowButtonAbstract',6,188,254,40);
    $add('button','more','...',15,204,15,14,array('keepOpen'=>true));
    $add('arrowbutton','arrow','',37,204,15,14);
    $add('textarrowbutton','choose','&Choose',60,204,50,14,array('styleFlags'=>8));
    $add('textarrowbutton','drop','&Drop',117,204,50,14,array('styleFlags'=>2));
    $add('colorarrowbutton','color','',174,204,33,14,array('textColor'=>0xff8000,'backgroundColor'=>0xff8000));
    $add('colorarrowbutton','color-text','ABC',215,204,33,14,array('textColor'=>0,'backgroundColor'=>0xffff));
    $add('groupbox','hyperlink-group','CGUIHyperLinkAbstract',269,4,185,48);
    $add('label','open-label','SetActionOpen',277,17,75,8);
    $add('hyperlink','open-link','www.altap.cz',365,17,47,8,array('styleFlags'=>0x14,'actionOpen'=>'https://www.altap.cz'));
    $add('label','command-label','SetActionPostCommand',277,27,81,8);
    $add('hyperlink','command-link','Say something!',365,27,55,8,array('styleFlags'=>0x14,'actionCommand'=>0x7f01));
    $add('label','hint-label','SetActionShowHint',277,37,81,8);
    $add('hyperlink','hint-link','mask hints',365,37,40,8,array('styleFlags'=>8,'actionHint'=>"text 1 text 1 text 1 text 1\ntext 2 text 2 text 2"));
    $add('groupbox','tooltip-group','SetCurrentToolTip',269,59,185,31);
    $add('statictext','tooltip','Pause the mouse pointer over this text.',278,73,130,8,array('styleFlags'=>0x40000,'toolTip'=>'ToolTip'));
    $add('listview','header-list','',269,113,185,50,array('styleFlags'=>0x01e00000));
    $add('toolbarheader','toolbar-header','CGUIToolbarHeaderAbstract',269,102,96,8,array('alignControlId'=>'header-list','buttonMask'=>0x31));
    $add('groupbox','origin-group','Created by',269,169,185,38);
    $add('label','runtime-label','Runtime:',277,181,42,8);
    $add('statictext','runtime-value','PHP.CLI',323,181,122,8,array('styleFlags'=>2));
    $add('label','extension-label','Extension:',277,192,42,8);
    $add('statictext','extension-value','Salamatrix PHP Demo',323,192,122,8,array('styleFlags'=>2));
    $add('button','close','Close',403,213,50,14,array('dialogResult'=>1,'styleFlags'=>0x100000));
    try { $dialog->show(); } finally { $dialog->close(); }
}

LUA

Lua

Snake-case options map to the same SMX1 payload.

LUA script source code example:

-- Build the complete gallery here, through the public runtime-neutral API.
    local dialog = Salamander.ui.dialog("Salamatrix UI capabilities", 463, 236)
    local function add(kind, id, text, x, y, width, height, options)
        options = options or {}; options.x=x; options.y=y
        options.width=width; options.height=height
        dialog.add_control(kind, id, text, options)
    end
    local uptime = "System was started " .. Salamander.ui.uptime() .. " ms ago."
    add("groupbox","static-group","CGUIStaticTextAbstract",6,4,254,108)
    add("label","not-attached-label","Not attached static text",14,17,80,8)
    add("label","uptime-plain",uptime,102,17,152,8)
    local rows = {
        {"static-none","0 (no flags)",uptime,27,0},
        {"static-cache","STF_CACHED_PAINT",uptime,37,1},
        {"static-bold","STF_BOLD","Bold &text",47,0x10082},
        {"static-underline","STF_UNDERLINE","Underlined text",56,0x20004},
        {"static-end","STF_END_ELLIPSIS","Long long long long long long long long long string.",66,0x20},
        {"static-path","STF_PATH_ELLIPSIS","C:\\Program Files\\Some Application With Long Path\\example.exe",76,0x40},
        {"static-path-url","STF_PATH_ELLIPSIS","ftp://ftp.altap.cz/pub/salamander/example.exe",87,0x40}}
    for _, row in ipairs(rows) do
        add("label",row[1].."-label",row[2],14,row[4],75,8)
        local extra={style_flags=row[5]}; if row[1]=="static-path-url" then extra.path_separator="/" end
        add("statictext",row[1],row[3],102,row[4],152,8,extra)
    end
    add("label","drag-hint","Drag texts to change their size.",151,97,103,8)
    add("groupbox","progress-group","CGUIProgressBarAbstract",6,118,254,66)
    add("label","progress-label","Progress label",15,129,60,8)
    add("progressbar","progress","",15,138,235,12,{progress=120})
    add("label","unknown-label","Unknown progress",15,154,67,8)
    add("progressbar","unknown-progress","",15,163,235,12,{progress=-1,indeterminate_duration=-1,indeterminate_interval=100})
    add("groupbox","buttons-group","Button, CGUITextArrowButtonAbstract, CGUIColorArrowButtonAbstract",6,188,254,40)
    add("button","more","...",15,204,15,14,{keep_open=true})
    add("arrowbutton","arrow","",37,204,15,14)
    add("textarrowbutton","choose","&Choose",60,204,50,14,{style_flags=8})
    add("textarrowbutton","drop","&Drop",117,204,50,14,{style_flags=2})
    add("colorarrowbutton","color","",174,204,33,14,{text_color=0xff8000,background_color=0xff8000})
    add("colorarrowbutton","color-text","ABC",215,204,33,14,{text_color=0,background_color=0xffff})
    add("groupbox","hyperlink-group","CGUIHyperLinkAbstract",269,4,185,48)
    add("label","open-label","SetActionOpen",277,17,75,8)
    add("hyperlink","open-link","www.altap.cz",365,17,47,8,{style_flags=0x14,action_open="https://www.altap.cz"})
    add("label","command-label","SetActionPostCommand",277,27,81,8)
    add("hyperlink","command-link","Say something!",365,27,55,8,{style_flags=0x14,action_command=0x7f01})
    add("label","hint-label","SetActionShowHint",277,37,81,8)
    add("hyperlink","hint-link","mask hints",365,37,40,8,{style_flags=8,action_hint="text 1 text 1 text 1 text 1\ntext 2 text 2 text 2"})
    add("groupbox","tooltip-group","SetCurrentToolTip",269,59,185,31)
    add("statictext","tooltip","Pause the mouse pointer over this text.",278,73,130,8,{style_flags=0x40000,tool_tip="ToolTip"})
    add("listview","header-list","",269,113,185,50,{style_flags=0x01e00000})
    add("toolbarheader","toolbar-header","CGUIToolbarHeaderAbstract",269,102,96,8,{align_control_id="header-list",button_mask=0x31})
    add("groupbox","origin-group","Created by",269,169,185,38)
    add("label","runtime-label","Runtime:",277,181,42,8)
    add("statictext","runtime-value","Lua",323,181,122,8,{style_flags=2})
    add("label","extension-label","Extension:",277,192,42,8)
    add("statictext","extension-value","Salamatrix Lua Demo",323,192,122,8,{style_flags=2})
    add("button","close","Close",403,213,50,14,{dialog_result=1,style_flags=0x100000})
    local shown, show_error = pcall(dialog.show)
    dialog.close()
    if not shown then error(show_error) end
end

COM

Automation JScript

A thin COM adapter over the same native service.

JavaScript source code example:

// Demonstrates the Salamatrix-backed Automation API.
// Requires the Salamatrix Framework plugin to be installed and loaded.
// Build the complete gallery here through Salamatrix.UI, just like every
// external runtime demo does through its worker facade.
var dialog = Salamander.UI.dialog("Salamatrix UI capabilities", 463, 236);
function add(kind,id,text,x,y,w,h,style,result) {
    dialog.add(kind,id,text,x,y,w,h,style,result);
}
var uptime = "System was started " + Salamander.UI.uptime + " ms ago.";
add("groupbox","static-group","CGUIStaticTextAbstract",6,4,254,108);
add("label","not-attached-label","Not attached static text",14,17,80,8);
add("label","uptime-plain",uptime,102,17,152,8);
var rows = [
    ["static-none","0 (no flags)",uptime,27,0],
    ["static-cache","STF_CACHED_PAINT",uptime,37,1],
    ["static-bold","STF_BOLD","Bold &text",47,0x10082],
    ["static-underline","STF_UNDERLINE","Underlined text",56,0x20004],
    ["static-end","STF_END_ELLIPSIS","Long long long long long long long long long string.",66,0x20],
    ["static-path","STF_PATH_ELLIPSIS","C:\\Program Files\\Some Application With Long Path\\example.exe",76,0x40],
    ["static-path-url","STF_PATH_ELLIPSIS","ftp://ftp.altap.cz/pub/salamander/example.exe",87,0x40]];
for (var row=0; row<rows.length; ++row) {
    add("label",rows[row][0]+"-label",rows[row][1],14,rows[row][3],75,8);
    add("statictext",rows[row][0],rows[row][2],102,rows[row][3],152,8,rows[row][4]);
}
dialog.set("static-path-url","pathSeparator","/");
add("label","drag-hint","Drag texts to change their size.",151,97,103,8);
add("groupbox","progress-group","CGUIProgressBarAbstract",6,118,254,66);
add("label","progress-label","Progress label",15,129,60,8);
add("progressbar","progress","",15,138,235,12); dialog.set("progress","progress",120);
add("label","unknown-label","Unknown progress",15,154,67,8);
add("progressbar","unknown-progress","",15,163,235,12); dialog.set("unknown-progress","indeterminate",-1,100); dialog.set("unknown-progress","progress",-1);
add("groupbox","buttons-group","Button, CGUITextArrowButtonAbstract, CGUIColorArrowButtonAbstract",6,188,254,40);
add("button","more","...",15,204,15,14); add("arrowbutton","arrow","",37,204,15,14);
add("textarrowbutton","choose","&Choose",60,204,50,14,8); add("textarrowbutton","drop","&Drop",117,204,50,14,2);
add("colorarrowbutton","color","",174,204,33,14); dialog.set("color","color",0xff8000,0xff8000);
add("colorarrowbutton","color-text","ABC",215,204,33,14); dialog.set("color-text","color",0,0xffff);
add("groupbox","hyperlink-group","CGUIHyperLinkAbstract",269,4,185,48);
add("label","open-label","SetActionOpen",277,17,75,8); add("hyperlink","open-link","www.altap.cz",365,17,47,8,0x14); dialog.set("open-link","actionOpen","https://www.altap.cz");
add("label","command-label","SetActionPostCommand",277,27,81,8); add("hyperlink","command-link","Say something!",365,27,55,8,0x14); dialog.set("command-link","actionCommand",0x7f01);
add("label","hint-label","SetActionShowHint",277,37,81,8); add("hyperlink","hint-link","mask hints",365,37,40,8,8); dialog.set("hint-link","actionHint","text 1 text 1 text 1 text 1\ntext 2 text 2 text 2");
add("groupbox","tooltip-group","SetCurrentToolTip",269,59,185,31);
add("statictext","tooltip","Pause the mouse pointer over this text.",278,73,130,8,0x40000); dialog.set("tooltip","toolTip","ToolTip");
add("listview","header-list","",269,113,185,50,0x01e00000);
add("toolbarheader","toolbar-header","CGUIToolbarHeaderAbstract",269,102,96,8); dialog.set("toolbar-header","toolbarHeader","header-list",0x31);
add("groupbox","origin-group","Created by",269,169,185,38);
add("label","runtime-label","Runtime:",277,181,42,8); add("statictext","runtime-value","Automation.JScript",323,181,122,8,2);
add("label","extension-label","Extension:",277,192,42,8); add("statictext","extension-value","Salamatrix Progress Demo",323,192,122,8,2);
add("button","close","Close",403,213,50,14,0x100000,1);
try { dialog.show(); } finally { dialog.close(); }

C++

Native plugin

Version negotiation and direct IDialog/IControl use.

Native C++ source code example:

static Salamatrix::UI::IControl* AddSalamatrixDemoControl(
    Salamatrix::UI::IDialog* dialog, Salamatrix::UI::ControlKind kind,
    const char* id, const char* text, int x, int y, int width, int height)
{
    Salamatrix::UI::ControlOptions options;
    options.Id = id;
    options.Text = text;
    Salamatrix::UI::ControlLayout layout;
    layout.HasBounds = TRUE;
    layout.X = x; layout.Y = y; layout.Width = width; layout.Height = height;
    return dialog->AddControlEx(kind, options, layout);
}

static BOOL ShowDemoPlugSalamatrixControls(
    Salamatrix::UI::IUIService* ui, HWND parent)
{
    using namespace Salamatrix::UI;
    DialogOptions options;
    options.Title = "Salamatrix UI capabilities";
    options.Parent = parent;
    options.Width = 463;
    options.Height = 236;
    IDialog* dialog = ui->CreateSalamatrixDialog(options);
    if (dialog == NULL)
        return FALSE;
    BOOL complete = TRUE;
#define ADD_CONTROL(kind, id, text, x, y, w, h) \
    (complete = AddSalamatrixDemoControl(dialog, kind, id, text, x, y, w, h) != NULL && complete)
    char uptime[96];
    _snprintf_s(uptime, _countof(uptime), _TRUNCATE,
                "System was started %llu ms ago.",
                static_cast(GetTickCount64()));
    ADD_CONTROL(ControlKindGroupBox,"static-group","CGUIStaticTextAbstract",6,4,254,108);
    ADD_CONTROL(ControlKindLabel,"not-attached-label","Not attached static text",14,17,80,8);
    ADD_CONTROL(ControlKindLabel,"uptime-plain",uptime,102,17,152,8);
    struct StaticRow { const char* Id; const char* Caption; const char* Text; int Y; DWORD Flags; };
    const StaticRow rows[] = {
        {"static-none","0 (no flags)",uptime,27,0},
        {"static-cache","STF_CACHED_PAINT",uptime,37,StaticTextCachedPaint},
        {"static-bold","STF_BOLD","Bold &text",47,StaticTextBold|StaticTextHandlePrefix|StaticTextAlignCenter},
        {"static-underline","STF_UNDERLINE","Underlined text",56,StaticTextUnderline|StaticTextAlignRight},
        {"static-end","STF_END_ELLIPSIS","Long long long long long long long long long string.",66,StaticTextEndEllipsis},
        {"static-path","STF_PATH_ELLIPSIS","C:\\Program Files\\Some Application With Long Path\\example.exe",76,StaticTextPathEllipsis},
        {"static-path-url","STF_PATH_ELLIPSIS","ftp://ftp.altap.cz/pub/salamander/example.exe",87,StaticTextPathEllipsis}};
    for (int index = 0; index < (int)_countof(rows); ++index)
    {
        ADD_CONTROL(ControlKindLabel,NULL,rows[index].Caption,14,rows[index].Y,75,8);
        IControl* control = AddSalamatrixDemoControl(dialog,ControlKindStaticText,rows[index].Id,rows[index].Text,102,rows[index].Y,152,8);
        complete = control != NULL && control->SetStyleFlags(rows[index].Flags) && complete;
        if (control != NULL && index == (int)_countof(rows)-1) complete = control->SetPathSeparator('/') && complete;
    }
    ADD_CONTROL(ControlKindLabel,"drag-hint","Drag texts to change their size.",151,97,103,8);
    ADD_CONTROL(ControlKindGroupBox,"progress-group","CGUIProgressBarAbstract",6,118,254,66);
    ADD_CONTROL(ControlKindLabel,NULL,"Progress label",15,129,60,8);
    IControl* control = AddSalamatrixDemoControl(dialog,ControlKindProgressBar,"progress","",15,138,235,12);
    complete = control != NULL && control->SetProgress(120) && complete;
    ADD_CONTROL(ControlKindLabel,NULL,"Unknown progress",15,154,67,8);
    control = AddSalamatrixDemoControl(dialog,ControlKindProgressBar,"unknown-progress","",15,163,235,12);
    complete = control != NULL && control->SetIndeterminateTiming(0xffffffff,100) && control->SetProgress(-1) && complete;
    ADD_CONTROL(ControlKindGroupBox,"buttons-group","Button, CGUITextArrowButtonAbstract, CGUIColorArrowButtonAbstract",6,188,254,40);
    ADD_CONTROL(ControlKindButton,"more","...",15,204,15,14);
    ADD_CONTROL(ControlKindArrowButton,"arrow","",37,204,15,14);
    control=AddSalamatrixDemoControl(dialog,ControlKindTextArrowButton,"choose","&Choose",60,204,50,14); complete=control!=NULL&&control->SetStyleFlags(TextArrowButtonRightArrow)&&complete;
    control=AddSalamatrixDemoControl(dialog,ControlKindTextArrowButton,"drop","&Drop",117,204,50,14); complete=control!=NULL&&control->SetStyleFlags(TextArrowButtonDropDown)&&complete;
    control=AddSalamatrixDemoControl(dialog,ControlKindColorArrowButton,"color","",174,204,33,14); complete=control!=NULL&&control->SetColor(RGB(0,128,255),RGB(0,128,255))&&complete;
    control=AddSalamatrixDemoControl(dialog,ControlKindColorArrowButton,"color-text","ABC",215,204,33,14); complete=control!=NULL&&control->SetColor(RGB(0,0,0),RGB(255,255,0))&&complete;
    ADD_CONTROL(ControlKindGroupBox,"hyperlink-group","CGUIHyperLinkAbstract",269,4,185,48);
    ADD_CONTROL(ControlKindLabel,NULL,"SetActionOpen",277,17,75,8);
    control=AddSalamatrixDemoControl(dialog,ControlKindHyperLink,"open-link","www.altap.cz",365,17,47,8); complete=control!=NULL&&control->SetStyleFlags(StaticTextUnderline|StaticTextHyperLinkColor)&&control->SetActionOpen("https://www.altap.cz")&&complete;
    ADD_CONTROL(ControlKindLabel,NULL,"SetActionPostCommand",277,27,81,8);
    control=AddSalamatrixDemoControl(dialog,ControlKindHyperLink,"command-link","Say something!",365,27,55,8); complete=control!=NULL&&control->SetStyleFlags(StaticTextUnderline|StaticTextHyperLinkColor)&&control->SetActionPostCommand(0x7f01)&&complete;
    ADD_CONTROL(ControlKindLabel,NULL,"SetActionShowHint",277,37,81,8);
    control=AddSalamatrixDemoControl(dialog,ControlKindHyperLink,"hint-link","mask hints",365,37,40,8); complete=control!=NULL&&control->SetStyleFlags(StaticTextDotUnderline)&&control->SetActionShowHint("text 1 text 1 text 1 text 1\ntext 2 text 2 text 2")&&complete;
    ADD_CONTROL(ControlKindGroupBox,"tooltip-group","SetCurrentToolTip",269,59,185,31);
    control=AddSalamatrixDemoControl(dialog,ControlKindStaticText,"tooltip","Pause the mouse pointer over this text.",278,73,130,8); complete=control!=NULL&&control->SetStyleFlags(StaticTextNotify)&&control->SetToolTipText("ToolTip")&&complete;
    control=AddSalamatrixDemoControl(dialog,ControlKindListView,"header-list","",269,113,185,50); complete=control!=NULL&&control->SetStyleFlags(ListViewNoDefaultColumn|ListViewShowSelectionAlways|ListViewEditLabels|ListViewNoSortHeader)&&complete;
    control=AddSalamatrixDemoControl(dialog,ControlKindToolbarHeader,"toolbar-header","CGUIToolbarHeaderAbstract",269,102,96,8); complete=control!=NULL&&control->SetToolbarHeader("header-list",ToolbarHeaderModify|ToolbarHeaderUp|ToolbarHeaderDown)&&complete;
    ADD_CONTROL(ControlKindGroupBox,"origin-group","Created by",269,169,185,38);
    ADD_CONTROL(ControlKindLabel,"runtime-label","Runtime:",277,181,42,8);
    control=AddSalamatrixDemoControl(dialog,ControlKindStaticText,"runtime-value","Native",323,181,122,8); complete=control!=NULL&&control->SetStyleFlags(StaticTextBold)&&complete;
    ADD_CONTROL(ControlKindLabel,"extension-label","Extension:",277,192,42,8);
    control=AddSalamatrixDemoControl(dialog,ControlKindStaticText,"extension-value","DemoPlug",323,192,122,8); complete=control!=NULL&&control->SetStyleFlags(StaticTextBold)&&complete;
    ControlOptions closeOptions; closeOptions.Id="close"; closeOptions.Text="Close"; closeOptions.DialogResult=1;
    ControlLayout closeLayout; closeLayout.HasBounds=TRUE; closeLayout.X=403; closeLayout.Y=213; closeLayout.Width=50; closeLayout.Height=14;
    control=dialog->AddControlEx(ControlKindButton,closeOptions,closeLayout); complete=control!=NULL&&control->SetStyleFlags(ButtonDefault)&&complete;
#undef ADD_CONTROL
    if (complete) dialog->ShowModal();
    ui->DestroyDialog(dialog);
    return complete;
}

Dark mode, DPI, keyboard, accessibility

Salamander dark scheme

Dark mode means Configuration → Colors → Scheme → Windows Dark Mode (experimental), not the Windows app-mode setting. NativeDialog applies the shared host policy to title bar and controls.

Per-monitor DPI

The dialog and every explicit child bound scale together on WM_DPICHANGED. Runtime code keeps one logical layout and does not perform its own monitor calculations.

Native interaction

Host font, initial focus, tab traversal, validation, tooltips, and bounded accessibility metadata are owned by the framework.

Lifecycle and protocol reference

dialog.createCreate title and bounds dialog.addAdd native control and options dialog.item / columnPopulate collection controls dialog.validationRequired-field checks dialog.eventsChange events over SMX1 dialog.showRun the modal native window dialog.get / setRead or change state dialog.destroyRelease window and callbacks

Always close in cleanup. The package host also destroys remaining dialogs when an extension deactivates, but explicit finally cleanup keeps ownership obvious and deterministic.

Current boundary: native C++ additionally has ControlKindSplitter, which is not yet published as a generic SMX1 worker kind. The Automation JScript COM adapter currently covers the capabilities-gallery controls; legacy Forms remain available for older JScript/VBScript forms while that adapter is broadened.

Source and deeper references

Complete Salamatrix.UI guideControl table, every option, full examples, events, capabilities, limits, and verification.
Automation API referenceThe complete script-facing Salamander API, including dialogs.
Platform foundationService registry, native ABI, ownership, and runtime broker architecture.
Runtime providersIndependent provider lifecycle and common worker surface.
GAP analysisImplemented UI surface, verification, and remaining work.
